June through August is when our phone rings the hardest for one specific reason: AC condensate overflows. Most of those calls were preventable two weeks earlier with a flashlight, a stepladder, and ninety seconds in the attic. This post is what to look for, in plain order, so you can do that check yourself before the ceiling tells you about it.
Why Your Attic Air Handler Is the Risk
If your two-story home was built in DFW in the last twenty-five years, your upstairs air handler almost certainly lives in the attic. It saves square footage on the second floor, but it parks a unit that pulls ten to twenty gallons of water out of the indoor air on a typical summer day, directly above your ceiling drywall. Every gallon of that condensate is meant to go out a one-inch PVC line to the exterior of the home. When the line clogs, the water has to go somewhere, and the only somewhere is down.
The secondary drain pan is the safety net. It sits flat under the air handler and catches whatever the primary system loses. It is supposed to stay dry forever. Water in that pan is not a maintenance issue. It is a warning that something upstream has already broken.
The Two-Minute Attic Check
You do not need to be an HVAC technician to do this. Pick a hot afternoon when the system has been running for hours and humidity load is highest, then:

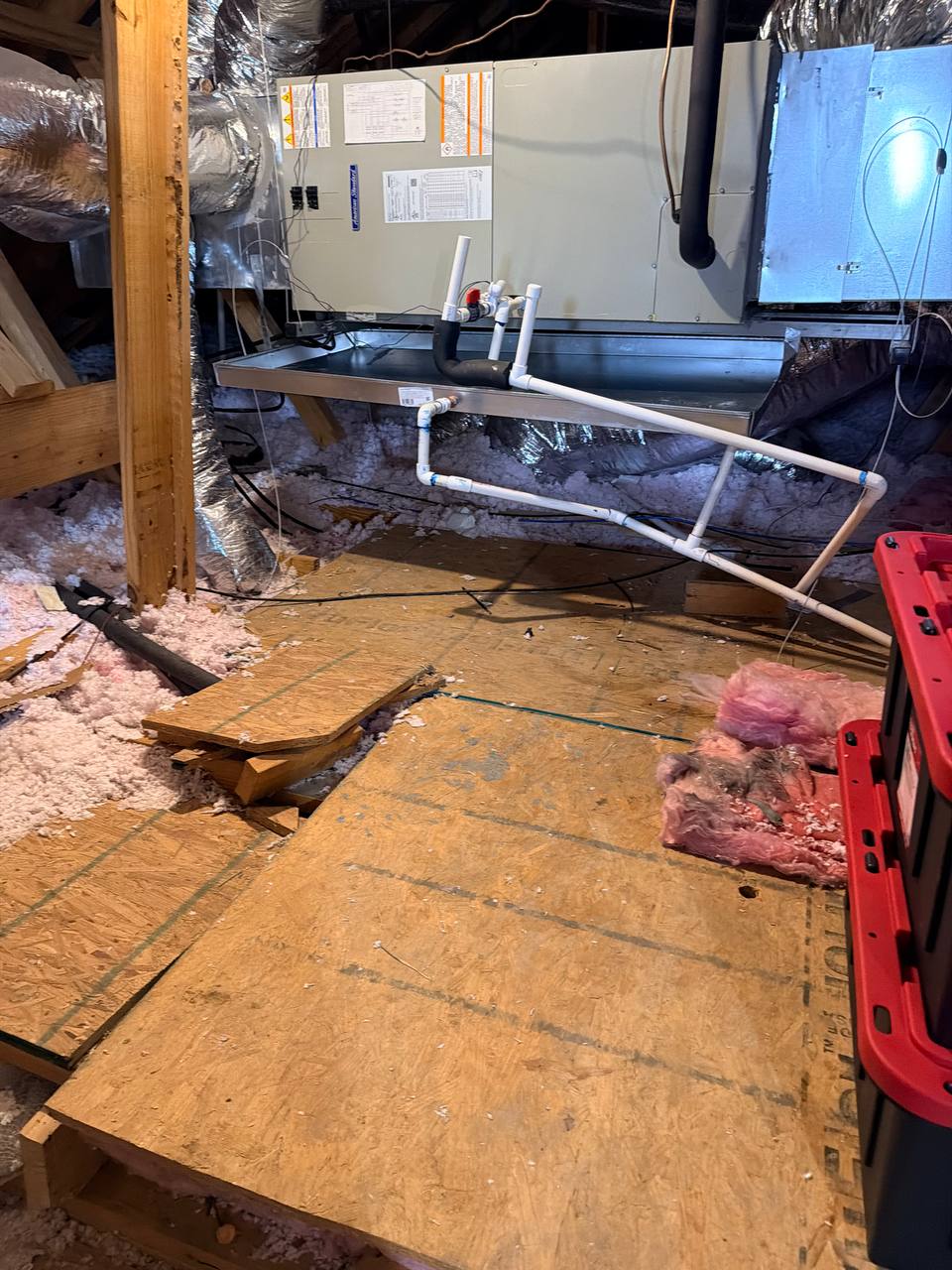

- Open the attic and get a clear look at the air handler. The metal pan sitting underneath it is the secondary drain pan. Shine a flashlight along the bottom.
- The pan should be bone dry. Any standing water, any wet ring at the edges, any rust streak forming on the metal means the primary line is not flowing the way it should.
- Look at the float switch. Most pans have a small plastic device clipped to the rim with two wires running off it. That is the float switch. If it is missing, your system has no way to shut itself off before the pan overflows.
- Check the OSB platform and surrounding insulation. Dark stains on the wood, compressed insulation, or any sign of past water is the system telling you it has overflowed before, whether or not anyone noticed downstairs.
If everything is dry, you are good. Note the date and check again in thirty days. If anything is wet, keep reading.
What Each Warning Sign Actually Means
Standing water in the pan. The primary condensate line is partially or fully clogged. Algae and biofilm grow inside that PVC through the off-season, and the first long humid run pushes a slug of material into the trap. The line is meant to drip continuously on a hot day. If it has stopped, the water is backing up into the pan instead. Call your HVAC technician within twenty-four hours.
Float switch missing or disconnected. Some builders skip the float switch to save twenty dollars per install. Others get unplugged during a tune-up and never get reconnected. A pan without a working float switch will fill, overflow, and dump on your ceiling without any warning to you. This is the single cheapest fix in the whole system. Have it installed or reconnected the next time a technician is at the house.
Stained decking or compressed insulation. Past overflow. The wood and insulation are telling you the pan has filled before. Even if no ceiling damage shows downstairs, that water went somewhere, and wet fiberglass holds moisture against framing for a long time. Worth a thermal scan to confirm there is nothing hidden.
The AC keeps shutting itself off and a high-water warning is lit. Do not bypass it. The float switch is doing exactly what it is designed to do. Call HVAC. The system is protecting your ceiling.
The Three Things That Cause Most of These Failures
After years of opening up DFW ceilings in June, the same root causes keep showing up. None are random.
A neglected condensate line. A line that has not been flushed since installation is the single biggest predictor of an overflow this summer. An HVAC tune-up in spring with the line cleared takes about ten minutes and prevents most of these losses.
A missing or disabled float switch. Sometimes it was never installed. Sometimes it was unplugged during a service call and never reconnected. Either way, you find out the day the pan overflows.
An unlevel pan. Over years of attic temperature swings, the air handler platform can shift. A pan that no longer sits level will let water pool in one corner before reaching the drain or the float switch, and small overflow events go unnoticed until the volume gets large.
When the Pan Has Already Overflowed
If you found a brown ring on the ceiling, a sagging spot below an upstairs hallway, or water dripping from a recessed light, the cavity above the drywall has been wet for days. Do not poke the ceiling, do not pull insulation, do not run a household fan and hope it dries. A controlled response with documented moisture readings keeps the repair tight and gives your insurance adjuster a clean record to work from.
What the response looks like: thermal imaging to map where water actually traveled, a non-penetrating meter to scan the ceiling, a pin meter to confirm inside the drywall and framing. Wet fiberglass comes out. Saturated drywall gets cut back in straight lines along the framing so the repair carpenter has clean edges. Air movers go in at the correct angle paired with a properly sized dehumidifier to pull moisture out of the air the air movers are loading. Readings get written down daily until we hit dry standard. Flood Titan is a residential, owner-operated, IICRC certified firm, and every job in Southlake, Grapevine, Colleyville, and across the metroplex gets the same documented process. The fuller picture lives on our water damage restoration page.
The Related Read
This post is the homeowner-side prevention guide. If you want the deeper write-up on how a clogged condensate line becomes a full ceiling loss, read AC Condensate Line Leaks: The DFW Ceiling Damage You Don't See Coming. Pair the two, and you have the full picture of why this is the single most common preventable water loss in DFW between Memorial Day and Labor Day.
If You See Water in the Pan Today
Call your HVAC technician first. Most of these get solved with a line flush and a quick float switch check. If the pan has already overflowed and there is any sign of water reaching the ceiling, call us before you touch anything. Flood Titan answers the phone 24/7 across the entire DFW metroplex. Phone 817-95-FLOOD. Email info@floodtitan.com.
