Thermal Imaging in Water Damage: What Infrared Cameras Show in DFW Homes

Thermal imaging has done two things to the water damage industry. It has made the truly hidden losses visible, and it has created a new kind of homeowner anxiety, the photo on a tech's tablet showing a cool blue patch the family swears was not there yesterday. Both reactions are reasonable. The camera is a powerful tool when it is used correctly, and a misleading toy when it is not. Here is how we use infrared on water damage jobs across DFW, and why we never let the picture make the final call.

What a Thermal Camera Actually Sees

The most important sentence in this article is this one. A thermal imager does not see water. It sees temperature. Every object emits infrared energy, and the camera translates that energy into a color map. Wet drywall is usually cooler than dry drywall because water is evaporating off the surface, drawing heat with it. That temperature delta is what shows up as a blue, purple, or black bloom on the screen.

That distinction matters because it shapes everything else. A cool spot can mean water. It can also mean a missing piece of insulation behind the wall, a return-air duct running through the cavity, a recessed light fixture that has cooled, or a wall framing member sitting on a slab that pulls the surface temperature down. None of those is water damage. All of them look almost identical to water on a thermal screen.

This is why we treat the thermal image as a clue, not a verdict. When the camera lights up an area, we mark it, then we go in with a pinless moisture meter, and where the meter agrees, we confirm with a pinned penetration reading. Two tools, two confirmations, before we cut anything.

When Thermal Imaging Earns Its Keep

The infrared camera is at its absolute best on these scenarios:

• A second-story bathroom leak that has traveled down a wall cavity into the room below. The water trail is invisible from either side, but the cooler signature follows the stud bay perfectly.

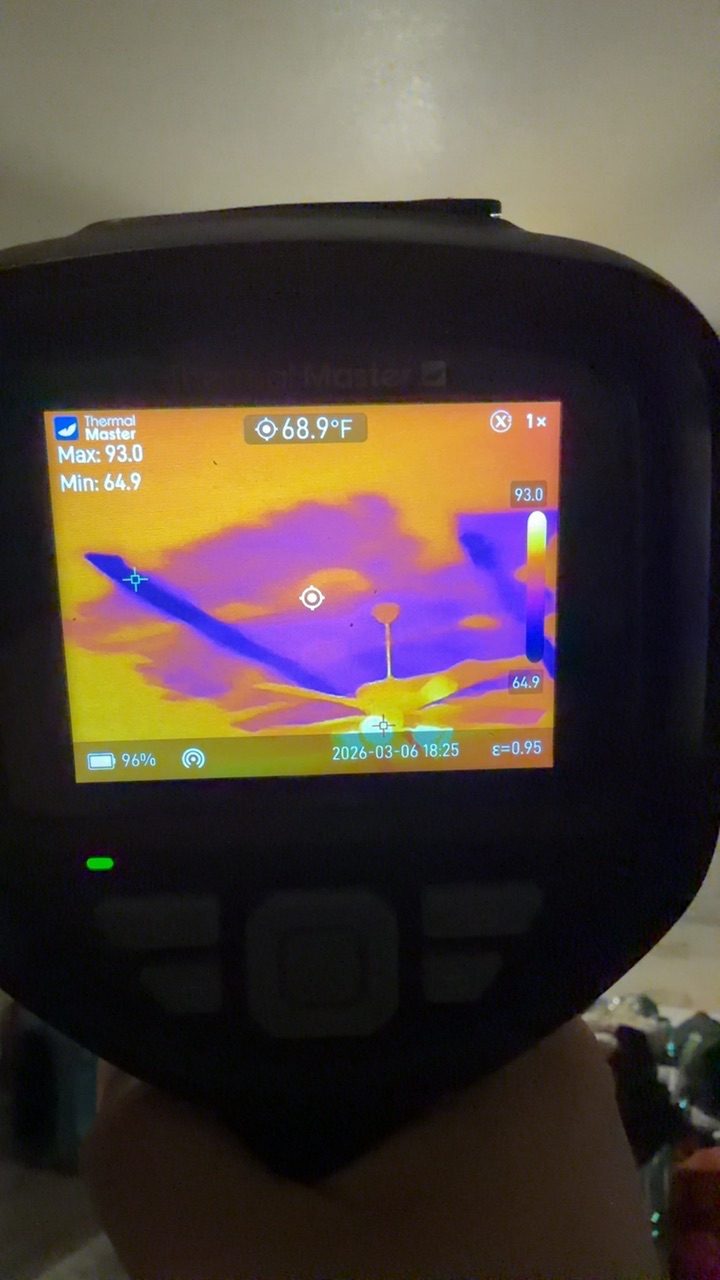

• Ceiling losses from an attic AC drain pan overflow or condensate line backup, where the drywall paint has not yet stained but the cavity is wet.
• Slab leaks where warm supply line water has been pooling under a vinyl or tile floor for days. The warm signature traces the line of the leak under the slab.
• Post-storm wind-driven rain that has crossed a window header or run down a brick weep system into a wall cavity, hours before the homeowner sees a stain.
• Mapping the edge of a known wet zone. The visible stain is rarely the full footprint. Thermal lets us draw the actual boundary before we set up containment and equipment.

On a typical job in Southlake or Frisco, the camera saves us from cutting drywall blind, and it saves the homeowner from a guess about how far the water actually went.

When the Camera Lies, and Why DFW Summer Makes It Worse

Infrared also gets fooled. The most common false positives we see in North Texas homes:

• Cold spots behind walls that have an HVAC supply duct running through the cavity. The camera reads a cool plane, no water present.
• Missing or compressed insulation. A cooler exterior wall on a hot DFW afternoon will sometimes look identical to a wet wall, especially on north and east elevations.
• Recently powered-off recessed lights, ceiling fans, or downlight cans. Those metal bodies hold a temperature delta against the surrounding drywall for hours.
• Slab joints and edge transitions. The slab itself is a heat sink. The first eight inches of drywall above a concrete slab almost always reads cooler than the wall above, water or not.

DFW summers add their own twist. In July and August, attic temperatures cross 130 degrees Fahrenheit. The ceiling drywall below those attics reads warm on a thermal scan, which can flatten the contrast between a wet bloom and a dry zone. We compensate by adjusting the camera span, by scanning early in the visit before our own equipment has changed the room conditions, and by trusting the moisture meter as the final word.

Thermal Plus Meter Plus Hygrometer

A finished drying plan never rests on a thermal image alone. The S500 industry standard treats infrared as a non-invasive locator, not a measurement. The numbers that go on the moisture log come from three tools used together.

• Thermal imager. Finds the suspect zone. Tells us where to point the next tool.
• Pinless moisture meter. Reads surface and near-surface moisture content in drywall, plaster, and wood. Quick, non-destructive, repeatable.
• Pinned moisture meter. Penetrates the material for a depth reading when we need to confirm framing or subfloor moisture. This is the reading that proves we have meter to dry standard.
• Hygrometer or thermo-hygrometer. Measures the air. Grains per pound of moisture in the air dictate how the dehumidifiers and air movers are sized and positioned.

That stack of readings is what tells us whether the air movers and dehumidifiers are actually winning, day over day. The thermal image is the headline. The meter readings are the receipts.

What This Means for Your Claim and Your Walls

When our tech points the camera at a wall in your home, ask what they are seeing and how they will confirm it. A reputable restoration company will explain the limits of the picture, show you the meter reading next to it, and document both. That paper trail is what protects the claim, and it is what keeps your water damage restoration job from ballooning into unnecessary demo.

Flood Titan is an owner-operated, IICRC certified firm in Southlake. Every tech on our trucks carries a thermal imager, a pinless meter, a pinned meter, and a thermo-hygrometer, and every reading goes into your file. If you are seeing a stain on a ceiling, a soft spot in a wall, or a discoloration around a recessed light and you want to know what is actually behind it, call us and we will show you. 817-95-FLOOD. Or write us at info@floodtitan.com.
