Two-Story Water Damage in DFW: Tracing the Leak from Upstairs to Downstairs

A leak from a second-floor bathroom is one of the most expensive losses a DFW homeowner can face, not because the volume of water is unusual, but because that water has two floors of materials to soak before anyone sees a stain. By the time a brown ring shows up on a downstairs ceiling, the loss already includes upstairs subfloor, downstairs ceiling drywall, joist bays, insulation, and often the inside face of an interior wall on the first floor. Tracing the path is half the job.

Why DFW Builds So Many Two-Story Homes

DFW lot sizes in master-planned neighborhoods favor vertical footprints. In Southlake, Trophy Club, Colleyville, Keller, and most of the post-1995 Frisco and Prosper builds, a two-story plan is the default. Primary suites are increasingly downstairs, but secondary bedrooms, kids' bathrooms, laundry rooms, and game rooms live upstairs.

Each of those upstairs rooms is a water source sitting directly above a finished living space. A guest bath above a dining room, a laundry above a kitchen, a game-room wet bar above a master closet. When a supply line fails or a drain clogs, the route the water takes downstairs is rarely a straight line.

The Five Most Common Upstairs Sources

From the jobs we run across the metroplex, the same handful of sources keep showing up:

• Toilet supply line. Plastic-nut compression fittings on the angle stop and the toilet tank are the single most common failure point on a second floor. A pinhole at 60 PSI runs continuously until the main is shut off.
• Washing machine hose. A burst hot or cold hose in an upstairs laundry can dump 5 to 7 gallons per minute into the floor cavity.
• Bathtub or shower pan failure. A failed grout joint, a hairline crack in a fiberglass pan, or a slow drain that overflows into the floor structure.
• Sink supply or P-trap. Slow drips behind a vanity cabinet wick into the substrate and travel down the wall cavity before showing.
• HVAC condensate. An attic air handler with a clogged primary line and a failed float switch is a top-five upstairs water source in DFW summer.

How Water Moves Through a Two-Story Frame

Once water gets into the upstairs floor cavity, gravity is only part of the story. The water spreads along the path of least resistance, which usually means following the top of the floor joists or the bottom of the subfloor, then dropping wherever a penetration exists. HVAC boots, recessed lights, ceiling fan boxes, drain stack penetrations, and even nail holes become exit points.

That is why the visible stain downstairs is often nowhere near the actual upstairs source. We routinely find toilet leaks that show up six to eight feet away on the downstairs ceiling, washing machine failures that travel down an interior wall and emerge as a baseboard stain in the room next door, and HVAC condensate leaks that surface as a ring around a downstairs can light.

The inside of an interior wall is a particularly bad path because it is closed on both sides. Water can sit against the bottom plate, wick into the carpet pad of the room behind, and feed mold growth in a cavity that no one ever opens.

What a Restoration Crew Investigates First

When we walk a two-story loss, the visible damage downstairs is usually the smallest part of what we map. The investigation runs in this order:

• Confirm the source upstairs. Shut off the suspected fixture, pressure-check the supply line, and visually inspect the floor and base of every cabinet in the room above the stain.
• Thermal imaging across the upstairs floor and the downstairs ceiling. Cold spots show where the water is sitting. This often catches a second affected room the homeowner did not know about.
• Moisture meter readings at every wall, floor, and ceiling boundary. We meter to dry standard rather than guessing, recording readings room by room.

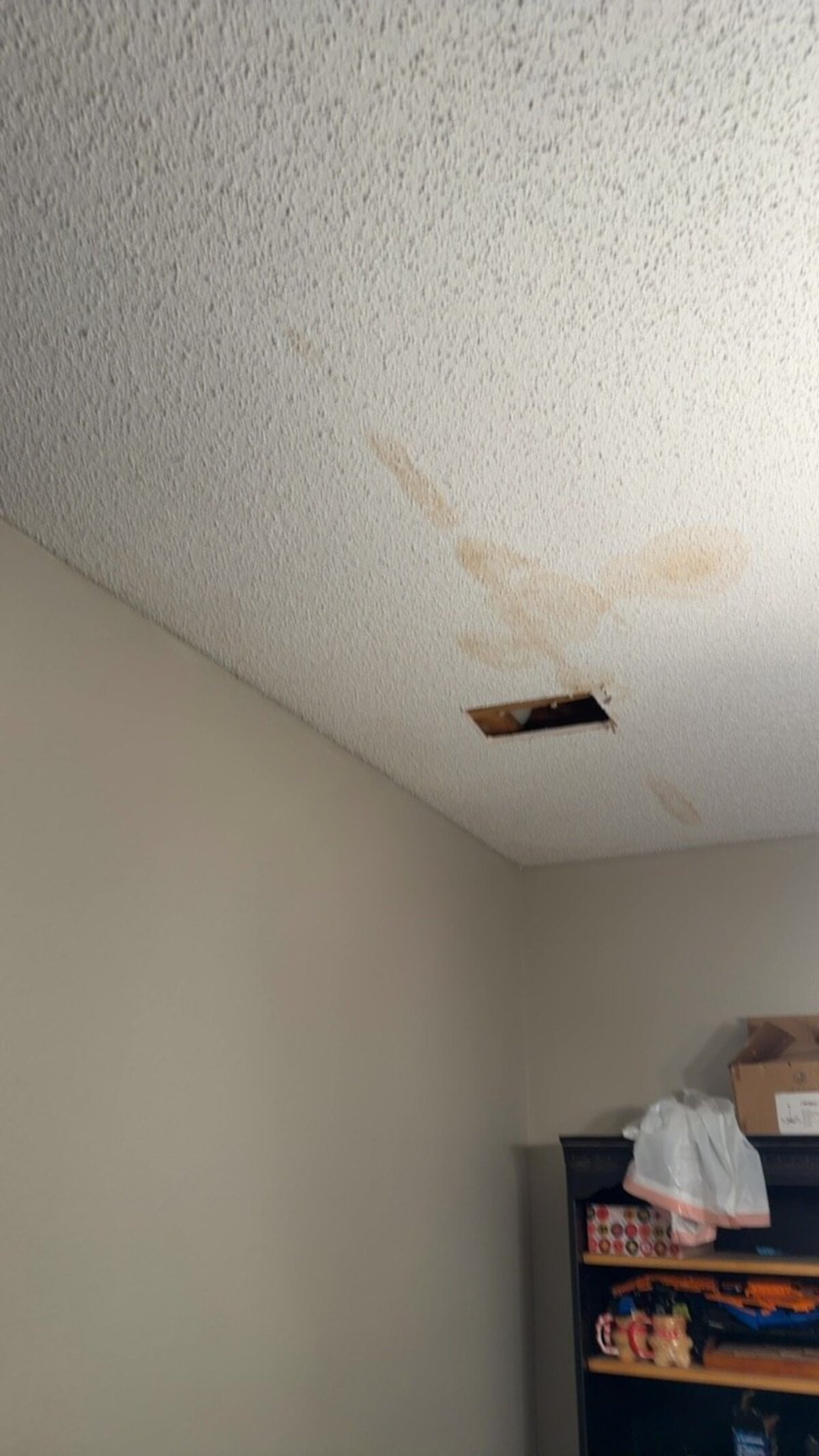

• Controlled inspection cuts. Small, repairable cuts in the downstairs ceiling and the upstairs flooring let us see insulation condition, joist saturation, and whether a drain or supply line is involved.
• Category determination. Toilet supply water is clean, but if the source is a toilet drain, a dishwasher backup, or sewer, the category changes and so do the demolition decisions.

Drying Two Floors at Once

A two-story drying setup is not just twice as much equipment. It is a coordinated plan where the air movers, dehumidifiers, and HEPA air scrubbers on each floor work together. We typically open the floor and ceiling cavity, remove wet insulation, place air movers to push dry air through the joist bays, and run the dehumidifier sized to pull water out of all the affected materials at once. Daily moisture monitoring tells us when each room hits dry standard.

What Homeowners Should and Shouldn't Touch

• Do shut off the main and the local fixture valve immediately. Get water off the upstairs floor with towels and a wet-dry vac if it is safe to do so.
• Do photograph the upstairs source and the downstairs stain before any cleanup.
• Do not poke or knock down a sagging downstairs ceiling. Trapped water can drop a section of drywall on top of you.
• Do not run a household ceiling fan in the affected downstairs room. You are spreading moisture across surfaces that may still be dry.
• Call Flood Titan at 817-95-FLOOD before the water has hours to keep tracking through the frame.

A two-story loss managed in the first 24 hours stays a single-stage water damage restoration job. Left for two or three days, it almost always picks up a mold component in the floor cavity, and the repair scope doubles. Owner-operated, IICRC certified, info@floodtitan.com, on the phone 24/7 across DFW.
